步骤1：初始化vite项目

打开命令行，到目标目录下输入以下命令

1	npm create vite@latest

会提示你输入你要创建的项目文件夹

D:\Code\java\NeXAS_DX>npm create vite@latest

> npx
> create-vite

? Project name: » frontend

选择Others

√ Project name: ... frontend
? Select a framework: » - Use arrow-keys. Return to submit.
    Vanilla
    Vue
    React
    Preact
    Lit
    Svelte
    Solid
    Qwik
    Angular
>   Others

然后选择 create-electron-vite

√ Project name: ... frontend
√ Select a framework: » Others
? Select a variant: » - Use arrow-keys. Return to submit.
    create-vite-extra ↗
>   create-electron-vite ↗

然后选择 Vue

> npx
> create-electron-vite frontend

? Project template: » - Use arrow-keys. Return to submit.
>   Vue
    React
    Vanilla

有下列提示则代表初始化完成

Done. Now run:

  cd frontend
  npm install
  npm run dev

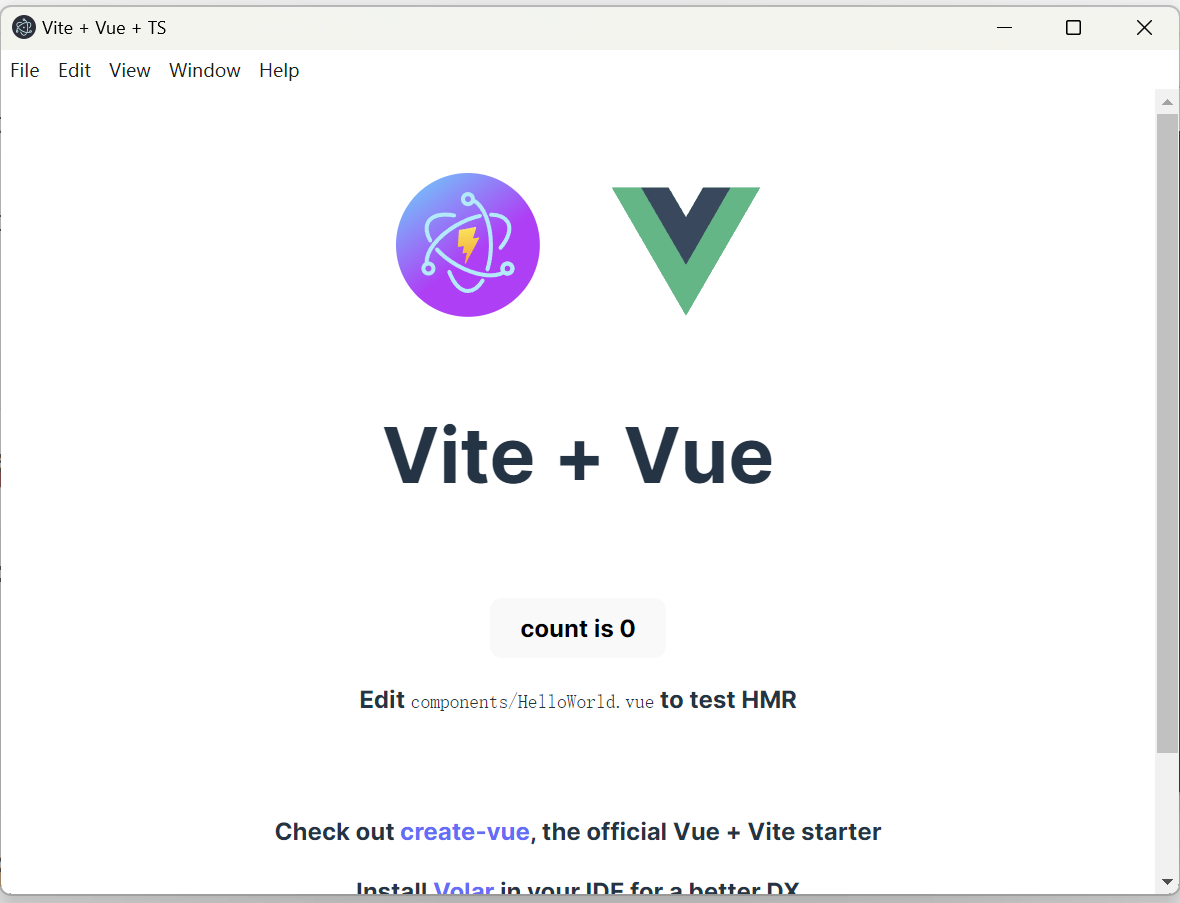

如上提示按顺序执行，弹窗弹出一个GUI，则代表项目构建结束

步骤2：调整配置

打开你的IDE，并找到 electron-builder.json5 ，如下

// @see - https://www.electron.build/configuration/configuration
{
  "$schema": "https://raw.githubusercontent.com/electron-userland/electron-builder/master/packages/app-builder-lib/scheme.json",
  "appId": "YourAppID",
  "asar": true,
  "productName": "YourAppName",
  "directories": {
    "output": "release/${version}"
  },
  "files": [
    "dist",
    "dist-electron"
  ],
  "mac": {
    "target": [
      "dmg"
    ],
    "artifactName": "${productName}-Mac-${version}-Installer.${ext}"
  },
  "win": {
    "target": [
      {
        "target": "nsis",
        "arch": [
          "x64"
        ]
      }
    ],
    "artifactName": "${productName}-Windows-${version}-Setup.${ext}"
  },
  "nsis": {
    "oneClick": false,
    "perMachine": false,
    "allowToChangeInstallationDirectory": true,
    "deleteAppDataOnUninstall": false
  },
  "linux": {
    "target": [
      "AppImage"
    ],
    "artifactName": "${productName}-Linux-${version}.${ext}"
  }
}

将其改成如下

{
  "productName": "nexasdxeditor",
  "appId": "com.nexasdxeditor.www",
  "win": {
    "icon": "electron/resource/images/head.png",
    "target": [
      {
        "target": "nsis",
        "arch": ["x64"]
      }
    ]
  },
  "nsis": {
    "oneClick": false,
    "perMachine": true,
    "allowToChangeInstallationDirectory": true
  },
  "files": [
    "dist",
    "dist-electron"
  ],
  "directories": {
    "output": "build"
  }
}

然后在 electron 文件夹下创建 resource/images/head.png ，创建完成后，找到 main.js 并将一部分代码注释掉

import { app, BrowserWindow } from 'electron'
// import { createRequire } from 'node:module'
import { fileURLToPath } from 'node:url'
import path from 'node:path'

// const require = createRequire(import.meta.url)
const __dirname = path.dirname(fileURLToPath(import.meta.url))

注释后重新在命令行构建

1	npm run build

如果是初次执行，会下载一堆依赖，因为都是从github上下载的，所以……还是请自行解决。

总之，完成以后会是这样

D:\Code\java\NeXAS_DX\frontend>npm run build

> frontend@0.0.0 build
> vue-tsc && vite build && electron-builder

vite v5.4.11 building for production...
✓ 18 modules transformed.
dist/index.html                  0.48 kB │ gzip:  0.31 kB
dist/assets/index-BKCeV6hx.css   1.27 kB │ gzip:  0.65 kB
dist/assets/index-CVTRloTz.js   60.87 kB │ gzip: 24.57 kB
✓ built in 388ms
vite v5.4.11 building for production...
✓ 1 modules transformed.
dist-electron/main.js  1.08 kB │ gzip: 0.59 kB
✓ built in 9ms
vite v5.4.11 building for production...
✓ 1 modules transformed.
dist-electron/preload.mjs  0.35 kB │ gzip: 0.18 kB
✓ built in 9ms
  • electron-builder  version=24.13.3 os=10.0.22631
  • loaded configuration  file=D:\Code\java\NeXAS_DX\frontend\electron-builder.json5
  • description is missed in the package.json  appPackageFile=D:\Code\java\NeXAS_DX\frontend\package.json
  • author is missed in the package.json  appPackageFile=D:\Code\java\NeXAS_DX\frontend\package.json
  • writing effective config  file=build\builder-effective-config.yaml
  • packaging       platform=win32 arch=x64 electron=30.5.1 appOutDir=build\win-unpacked
  • downloading     url=https://github.com/electron/electron/releases/download/v30.5.1/electron-v30.5.1-win32-x64.zip size=109 MB parts=8
  • downloaded      url=https://github.com/electron/electron/releases/download/v30.5.1/electron-v30.5.1-win32-x64.zip duration=10.801s
  • downloading     url=https://github.com/electron-userland/electron-builder-binaries/releases/download/winCodeSign-2.6.0/winCodeSign-2.6.0.7z size=5.6 MB parts=1
  • downloaded      url=https://github.com/electron-userland/electron-builder-binaries/releases/download/winCodeSign-2.6.0/winCodeSign-2.6.0.7z duration=49.155s
  • building        target=nsis file=build\nexasdxeditor Setup 0.0.0.exe archs=x64 oneClick=false perMachine=true
  • downloading     url=https://github.com/electron-userland/electron-builder-binaries/releases/download/nsis-3.0.4.1/nsis-3.0.4.1.7z size=1.3 MB parts=1
  • downloaded      url=https://github.com/electron-userland/electron-builder-binaries/releases/download/nsis-3.0.4.1/nsis-3.0.4.1.7z duration=36.725s
  • downloading     url=https://github.com/electron-userland/electron-builder-binaries/releases/download/nsis-resources-3.4.1/nsis-resources-3.4.1.7z size=731 kB parts=1
  • downloaded      url=https://github.com/electron-userland/electron-builder-binaries/releases/download/nsis-resources-3.4.1/nsis-resources-3.4.1.7z duration=1m14.848s
  • building block map  blockMapFile=build\nexasdxeditor Setup 0.0.0.exe.blockmap

D:\Code\java\NeXAS_DX\frontend>

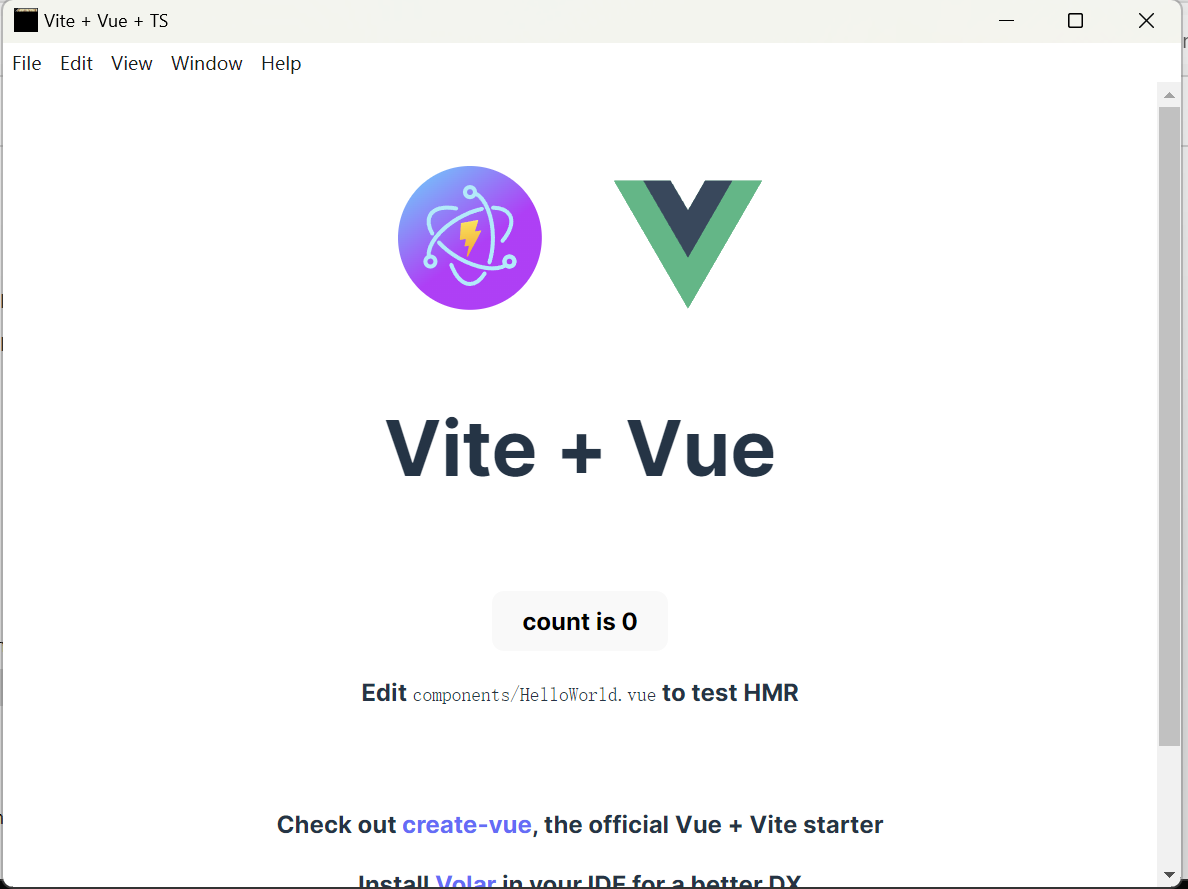

最后一步，找到你的 build\win-unpacked 双击exe启动

外面的那个则是安装包，如果你做的是开源项目，可以放到release目录下供大家使用

结语

最近打算给一款名为 baldr sky divex 的游戏开发一款mod编辑器，但无奈的是本人没有桌面应用开发经验。

索性知道了还有个Electron能直接以前端技术栈进行GUI的开发，并且可以连带启动子程序打包，意思就是我只用画个画面，然后写个后端就能给大家使用了（虽然现在的功能只有打包解包与shift-jis转hex）。

项目如下，如果有兴趣的话可以看看~~臃肿的代码~~：

https://github.com/Karaik/NeXAS_DX

目前（2025/01/05）这个项目还是私有项目，因为啥也没做出来，之后有成果的话会开源。
